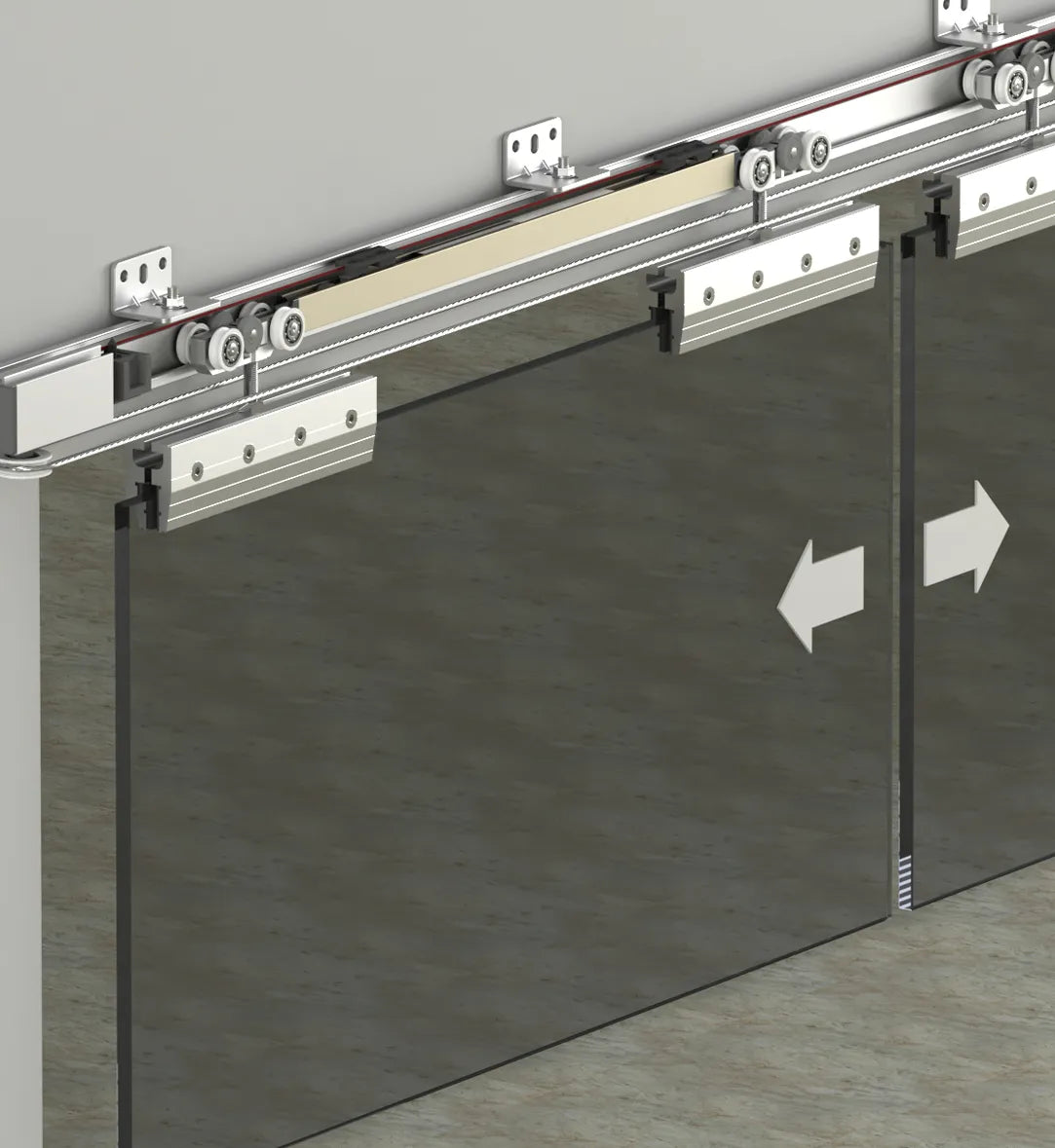

120 KG ADJUSTABLE FUNICULAR SLIDING GLASS DOOR SYSTEM - TWO WAY SOFT CLOSING
- It is a synchronized double sliding door system.
- Designed for glass doors.
- Thanks to its special clamping system, no drilling operation is required on the glass.
- The operating type is top-hung suspension.
- The doors operate in a synchronized manner thanks to the cable system.
- For in-wall systems, the mechanism and rail profile are specially designed.
- The rail-integrated brake system built into the roller provides braking in both opening and closing directions.
- The load capacity is 120 kg per door.
- Suitable for use with 8 - 10 - 12 mm glass thicknesses.
- The minimum door leaf width must be 740 mm.
- The three rollers on the mechanism prevent bouncing during closing.
- The carrier mechanism body is manufactured from aluminum and zamak material.
- Provides quiet and long-lasting operation thanks to high-quality bearings.
- The carrier mechanism roller type is beta model (female roller).
- Operates with an oil-damped piston soft-closing system.
- Height adjustment can be made via the upper mechanism.
- Profiles and mechanisms are shipped in separate packages.
- For bulk orders, optional Setbox packaging is available.
- The 3D installation and assembly video of the sliding system can be accessed at albaturas.com.
