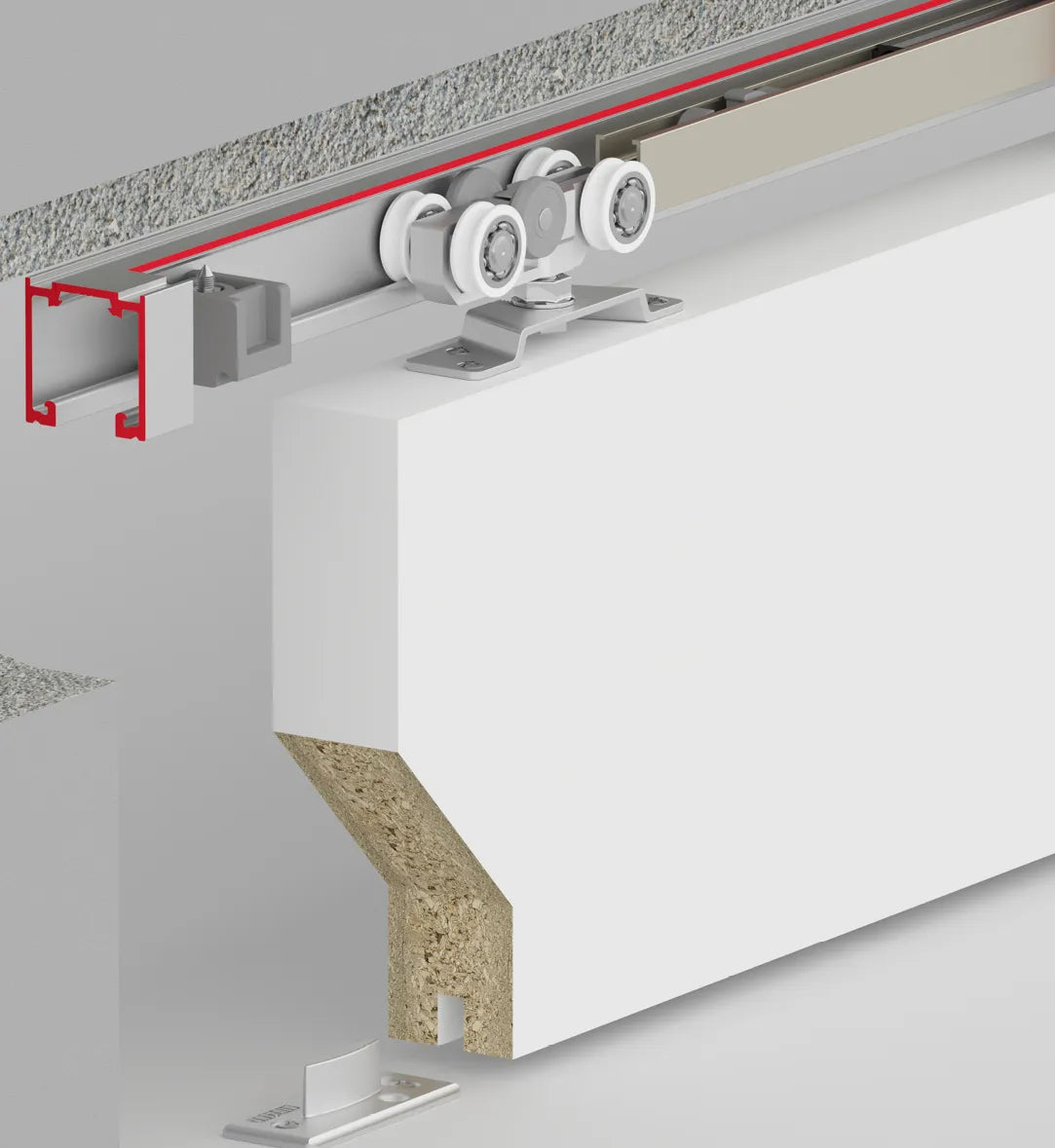

120 KG ADJUSTABLE SLIDING DOOR SYSTEM - TWO WAY SOFT CLOSING
- Designed for wooden panel doors.
- Mechanism and rail profile specially developed for in-wall sliding systems.
- Operates with a top-hung sliding mechanism.
- Load capacity: 120 kg per door.
- Integrated rail brake system within the wheel allows controlled braking in both opening and closing directions.
- Suitable for panel thicknesses between 25 mm and 60 mm.
- Minimum door width should be 650 mm.
- Triple-wheel mechanism prevents misalignment during door closure.
- Carrier body is made of aluminum and zamak for enhanced strength and durability.
- High-quality ball bearings ensure silent and long-lasting performance.
- Carrier mechanism features Beta-type (female) wheels.
- Operates with an oil-damped soft-closing piston system.
- Height adjustment available through the upper mechanism.
- Plastic floor guide included for bottom support.
- Optional bottom guide with ball bearing is available upon request.
- Profiles and mechanisms are shipped in separate packaging.
- Optional Setbox packaging available for bulk or project-based orders.
- 3D installation and assembly video available at: www.albaturas.com.
Explore organic, eco-friendly products crafted from natural ingredients. Fresh, chemical-free essentials for a healthier lifestyle and a more sustainable, conscious way of living.
Couldn't load pickup availability
Product Information
Product Information
Albatur
DoorSlide
9080
is
a
soft-closing
sliding
door
system
specially
designed
for
wooden
panel
doors.
Offering
a
solution
for
single
doors
with
a
high
load
capacity
of
up
to
120
kg,
this
system
is
compatible
with
door
panels
ranging
from
25
to
60
mm
in
thickness.
The
third
roller
on
the
mechanism
ensures
a
smoother
movement
by
preventing
the
door
from
bouncing
while
closing.
Additionally,
the
mechanism
offers
durability
and
robustness
thanks
to
its
aluminum
body.High-quality
bearings
ensure
that
the
system
delivers
a
quiet
and
long-lasting
performance.
The
braking
system
integrated
into
the
track
provides
a
soft-closing
feature
in
both
the
opening
and
closing
directions,
ensuring
safe
and
comfortable
operation.
The
minimum
door
leaf
width
must
be
650
mm,
and
the
door
can
be
adjusted
up
and
down,
allowing
it
to
be
easily
brought
into
the
desired
position.Offering
easy
and
practical
installation,
this
system
saves
time
in
its
area
of
use.
To
learn
about
the
installation
process
in
detail,
you
can
watch
the
setup
video
available
at
www.albaturas.com.
