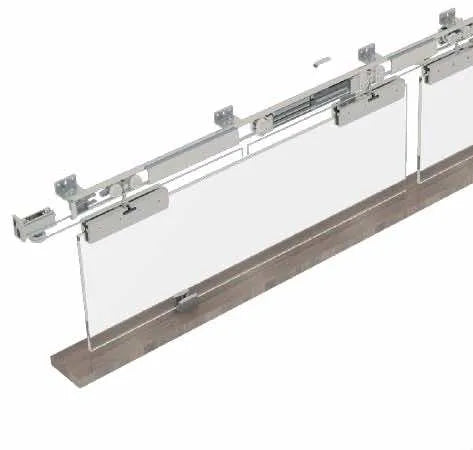

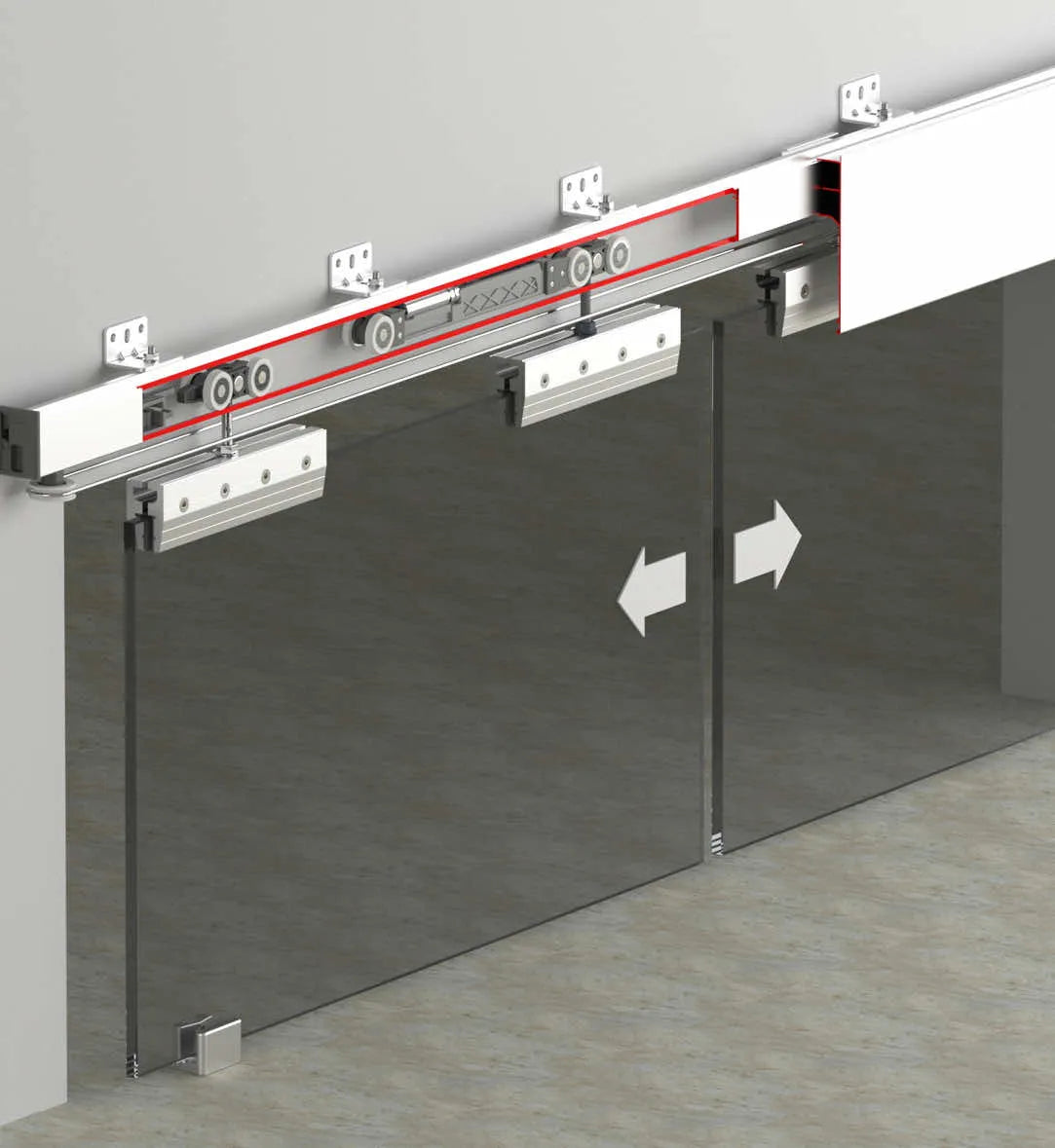

120 KG FUNICULAR SLIDING GLASS DOOR SYSTEM-HAS ONE SOFT
- It is a synchronized double sliding door system.
- Designed for glass doors.
- Thanks to the special clamping system, no glass drilling is required.
- The operating principle is top-hung suspension.
- The cable-driven system ensures synchronized door movement.
- The mechanism and track profile are specially designed for in-wall systems.
- The in-track braking system integrated into the roller provides braking in the closing direction.
- Load capacity is 120 kg per door.
- Suitable for use with 8 – 10 – 12 mm glass thicknesses.
- Minimum door panel width must be 600 mm.
- The carrier mechanism body is manufactured from aluminum and zamak materials.
- High-quality bearings ensure silent and long-lasting operation.
- Operates with a hydraulic soft-closing piston system.
- Height adjustment can be made via the upper mechanism.
- Profiles and mechanisms are shipped in separate packages.
- For bulk orders, optional Setbox packaging is available.
- The 3D installation and assembly video of the sliding system is available at albaturas.com.
Explore organic, eco-friendly products crafted from natural ingredients. Fresh, chemical-free essentials for a healthier lifestyle and a more sustainable, conscious way of living.
Couldn't load pickup availability
Product Information
Product Information
Combining
aesthetics
and
functionality
in
modern
living
spaces,
DoorSync
9951
is
a
synchronized
sliding
double
door
system
specially
designed
for
glass
doors.
Elevating
the
user
experience
to
the
highest
level,
this
system
has
a
load
capacity
of
120
kg
for
each
door
and
works
in
compatibility
with
glass
thicknesses
of
8,
10,
and
12
mm.
Its
high-quality
bearings,
which
ensure
quiet
and
long-lasting
performance,
offer
smooth
and
safe
movement
capability,
while
the
in-track
braking
system
ensures
that
the
doors
close
in
a
controlled
and
safe
manner.Drawing
attention
with
its
aesthetic
design
and
technical
superiorities,
DoorSync
9951
offers
a
sleeker
appearance
by
concealing
mechanism
details
thanks
to
its
optional
cover
profile.
In
addition,
wear
on
the
synchronized
wheels
is
prevented
with
a
specialized
PVC-coated
cable,
allowing
the
system
to
maintain
its
first-day
performance
for
many
years.
Requiring
a
minimum
door
width
of
600
mm,
this
system
offers
practical
solutions
for
different
installation
needs
thanks
to
the
height
adjustment
option
on
the
top
mechanism.Possessing
a
user-friendly
structure
in
terms
of
ease
of
installation
as
well,
DoorSync
9951
includes
plastic
guides
suitable
for
different
glass
thicknesses
at
the
bottom
detail,
while
offering
a
complete
system
with
special
track
profile
connection
brackets
for
wall-surface
mounting.
Combining
both
aesthetics
and
functionality,
this
innovative
solution
stands
out
as
a
safe,
durable,
and
modern
choice
in
glass
door
applications.As
Albatur
Industry,
we
add
value
to
your
living
spaces
with
the
sliding
systems
we
have
developed
with
our
high
engineering
approach,
and
we
offer
comfort
and
safety
together
with
our
innovative
solutions.
You
can
access
the
3D
installation
video
of
DoorSync
9951
on
our
website,
experiencing
quality
and
technology
together.
