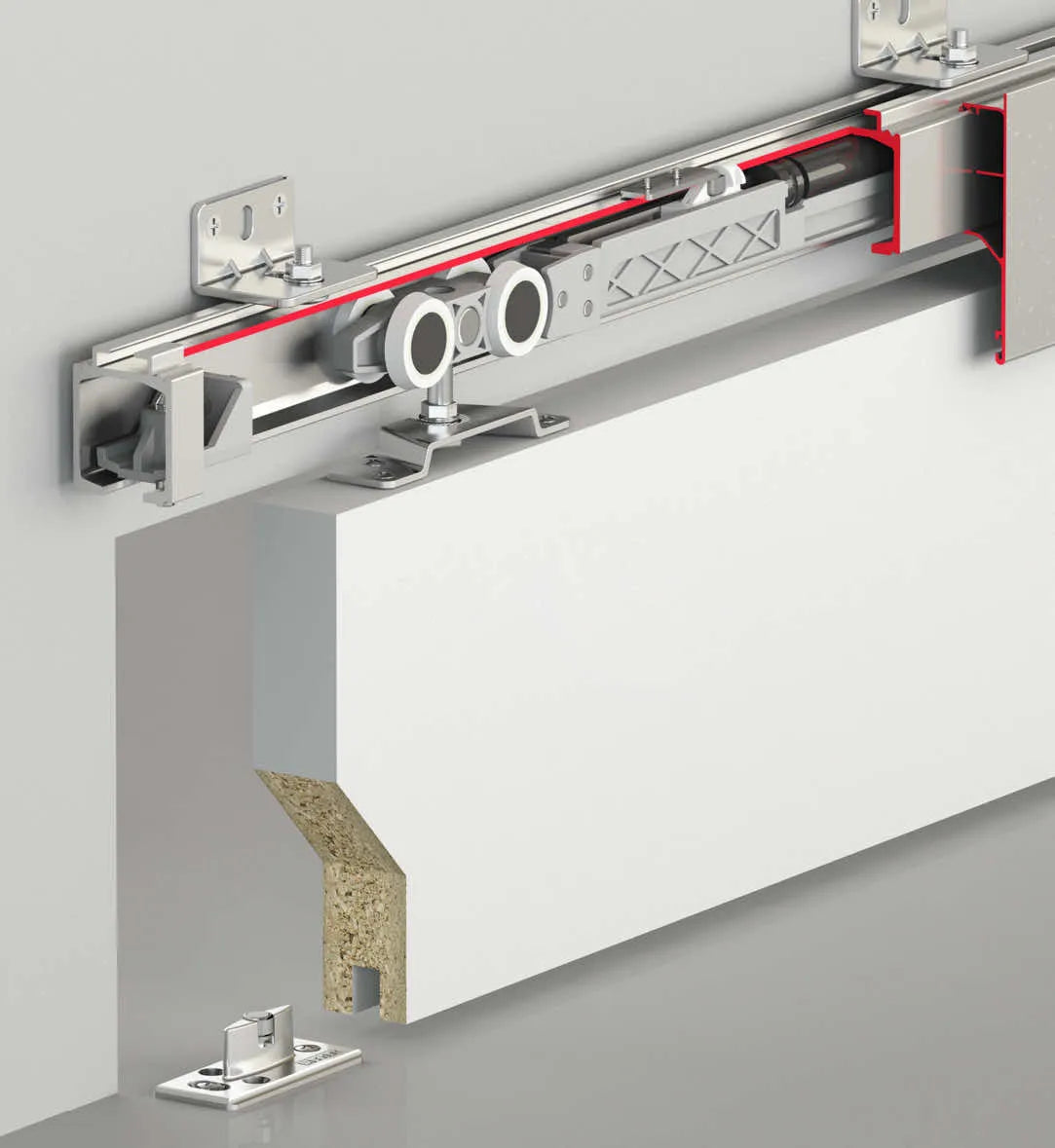

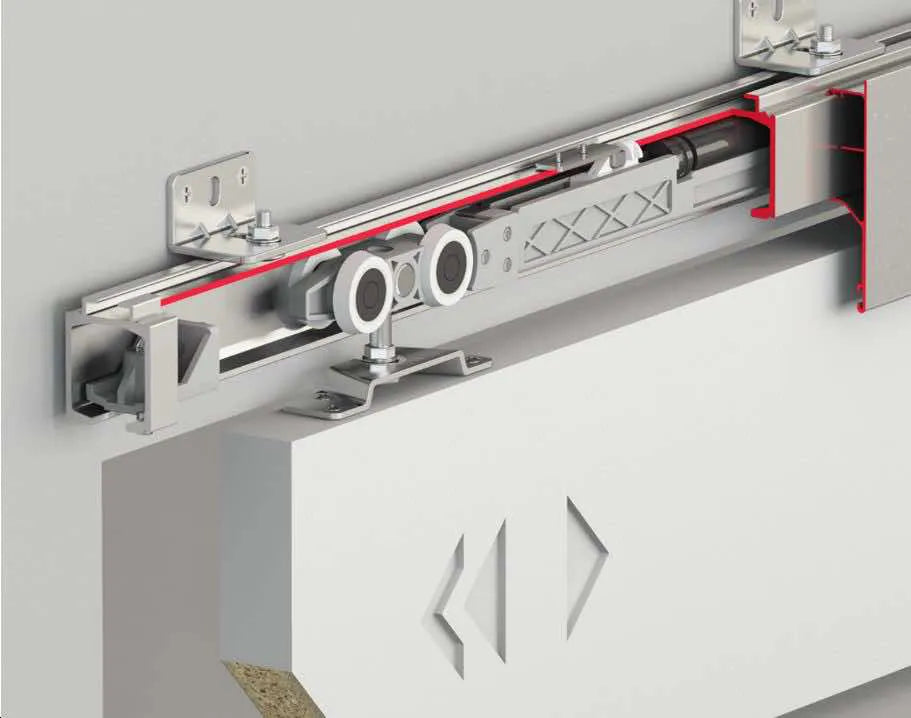

120 KG SLIDING DOOR SYSTEM - HAS ONE WAY SOFT CLOSING
- Designed for wooden panel doors
- Features a built-in rail soft-closing system that provides braking in the closing direction
- Operates with a top-hung sliding mechanism
- Suitable for glass or mirror application on the panel depending on the load capacity
- Wall-mount rail profile bracket is available for installation
- Optional cover profile mountable on the rail conceals mechanism details
- Load capacity is 120 kg per door
- Suitable for panel thicknesses between 22 – 60 mm
- Minimum panel width should be 500 mm
- Recommended for use with a maximum height of 2300 mm
- The carrier mechanism body is made of plastic material
- The carrier mechanism wheel type is flat model
- Provides silent and long-lasting operation thanks to high-quality bearings
- Operates with a soft-closing air piston system
- Height adjustment is available on the mechanism
- Produced in grey color as standard
- Profiles and mechanisms are shipped in separate packages
- Optional Setbox Packaging is available for bulk orders
- You can access the 3D installation and assembly video of the sliding system at albaturas.com
Explore organic, eco-friendly products crafted from natural ingredients. Fresh, chemical-free essentials for a healthier lifestyle and a more sustainable, conscious way of living.
Couldn't load pickup availability
Product Information
Product Information
Albatur
DoorSlide
9701
Sliding
Door
System
is
a
solution
designed
with
every
detail
in
mind
for
your
kitchens,
rooms,
and
all
indoor
doors.
You
can
choose
Albatur
sliding
door
and
wardrobe
systems,
which
offer
a
wide
product
range
with
well-thought-out
details.The
product
can
be
procured
with
the
SETBOX
packaging
model,
where
the
track
profiles
and
sliding
roller
groups
are
served
within
a
single
package.
You
can
quickly
obtain
the
product
from
hundreds
of
Albatur
sales
points
in
Turkey
and
abroad.Easy
installation
and
assembly
videos
of
Albatur
sliding
systems
can
be
accessed
on
our
YouTube
page.
Detailed
information
regarding
Albatur
sliding
system
details
is
available
on
our
website.
