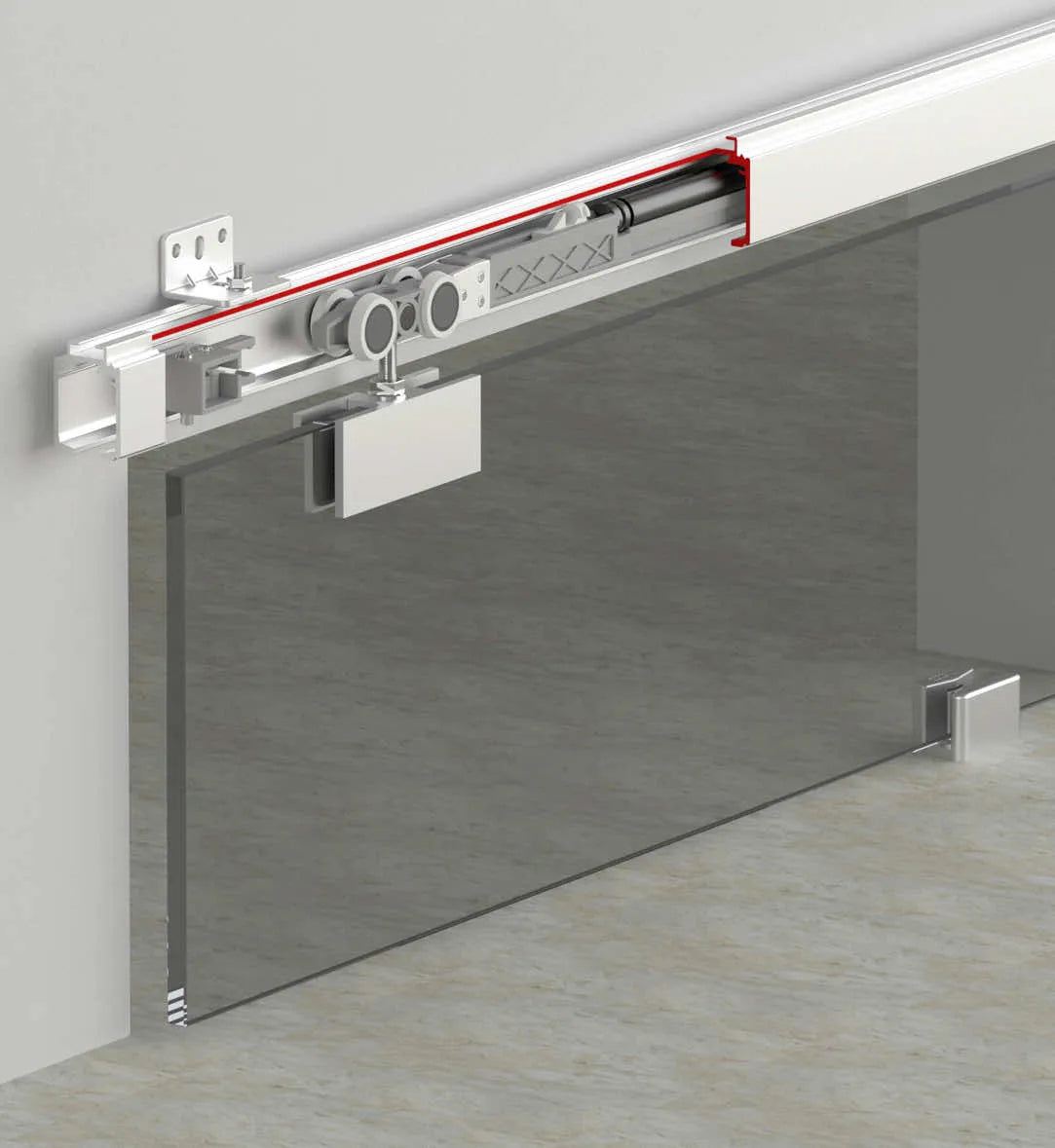

120 KG SLIDING GLASS DOOR SYSTEM- HAS ONE WAY SOFT
- Designed for glass doors.
- It is a sliding door system.
- The wheel-integrated in-rail brake system provides braking in the closing direction.
- It requires drilling on the glass.
- The operating type is a top-hung suspension system.
- The load capacity is 120 kg for one door.
- It is suitable for glass thicknesses between 8–12 mm.
- Use is recommended up to a maximum height of 2300 mm.
- The minimum door width should be 600 mm.
- The carrier mechanism wheel type is a straight model.
- High-quality bearings ensure quiet and long-lasting operation.
- The carrier mechanism body is manufactured from durable plastic material.
- Height adjustment can be made on the upper mechanism.
- An optional closure profile that can be mounted on the rail hides the mechanism details.
- A plastic guide suitable for different thicknesses is included in the bottom detail.
- Profiles and mechanisms are shipped in separate packages.
- For lot orders, optional Setbox Packaging can be provided.
- You can access the 3D installation video of the sliding system at albaturas.com.
