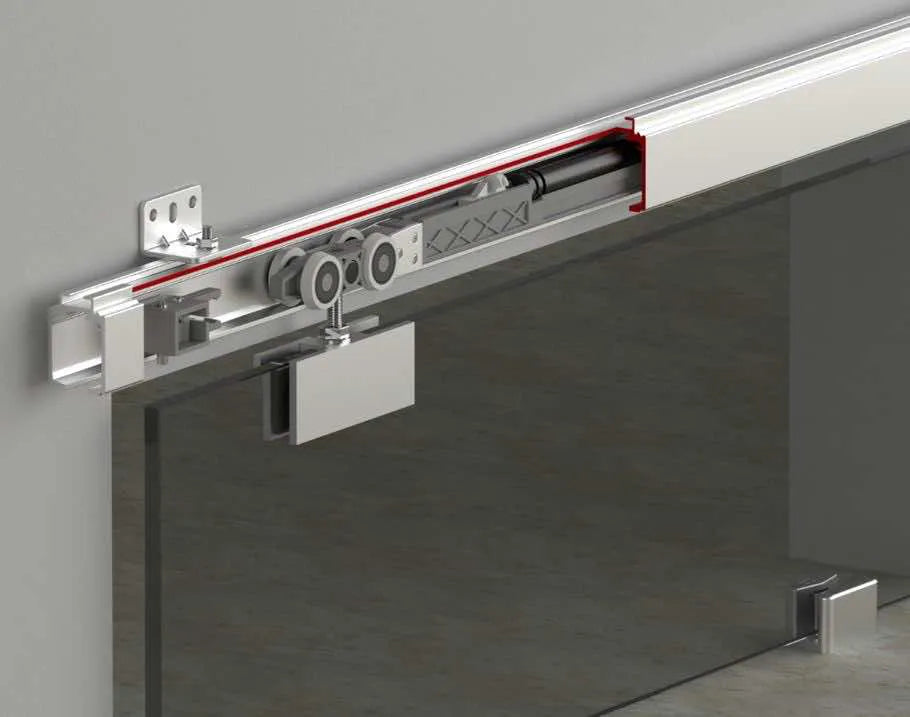

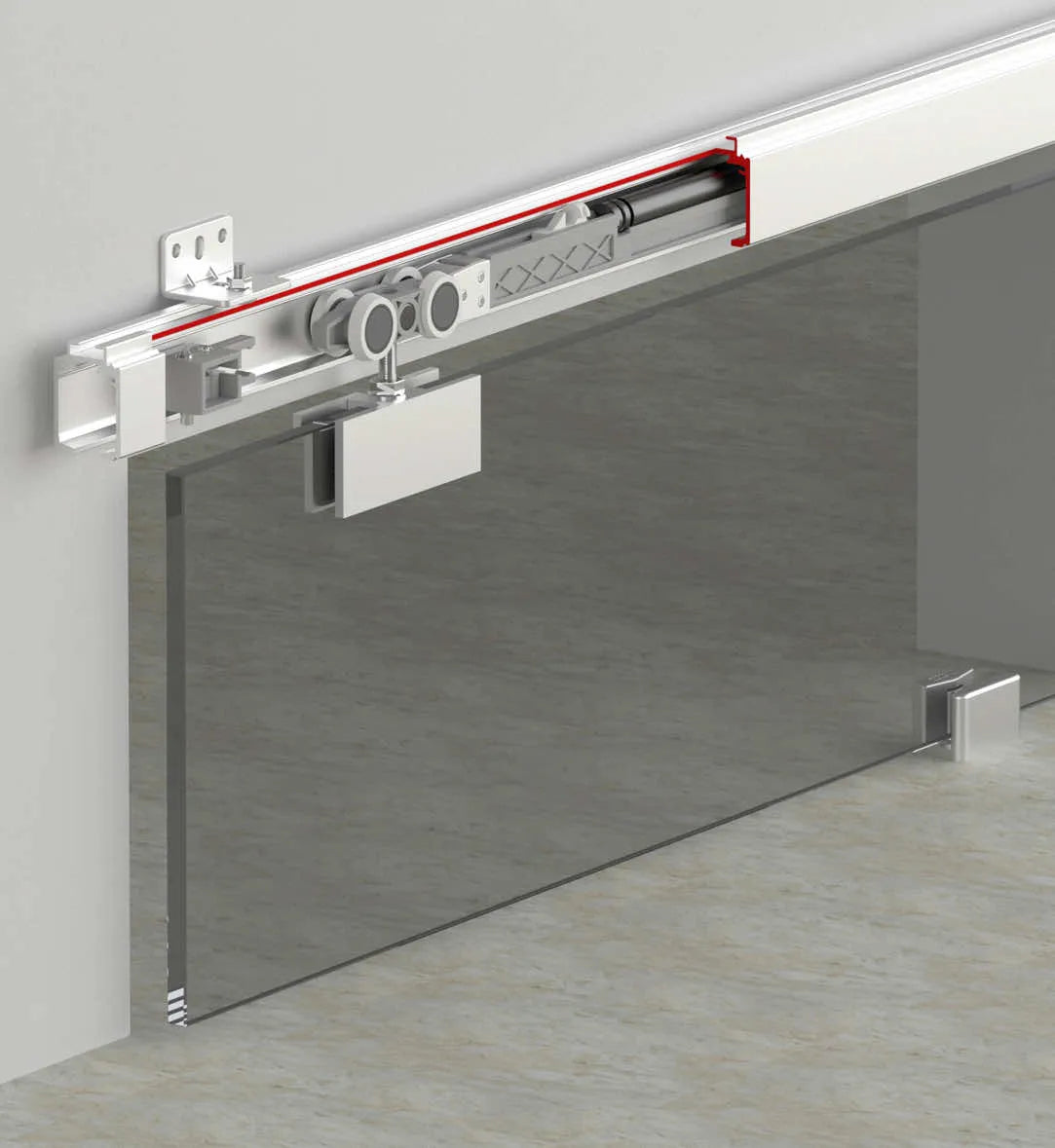

120 KG SLIDING GLASS DOOR SYSTEM - HAS TWO WAY SOFT CLOSING
- Designed for glass doors.
- It is a sliding door system.
- It requires drilling on the glass.
- The mechanism and rail profile are specially designed for in-wall systems.
- The operating type is a top-hung suspension system.
- The load capacity is 120 kg for one door.
- The wheel-integrated in-rail brake system provides braking in both opening and closing directions.
- It is suitable for glass thicknesses between 8–12 mm.
- Use is recommended up to a maximum height of 2300 mm.
- The minimum door width should be 900 mm.
- The carrier mechanism wheel type is a straight model.
- High-quality bearings ensure quiet and long-lasting operation.
- The carrier mechanism body is manufactured from aluminum and zamak materials.
- It operates with a hydraulic soft-closing piston system.
- Height adjustment can be made on the upper mechanism.
- A plastic guide suitable for different thicknesses is included in the bottom detail.
- Profiles and mechanisms are shipped in separate packages.
- For lot orders, optional Setbox Packaging can be provided.
- You can access the 3D installation video of the sliding system at albaturas.com.
