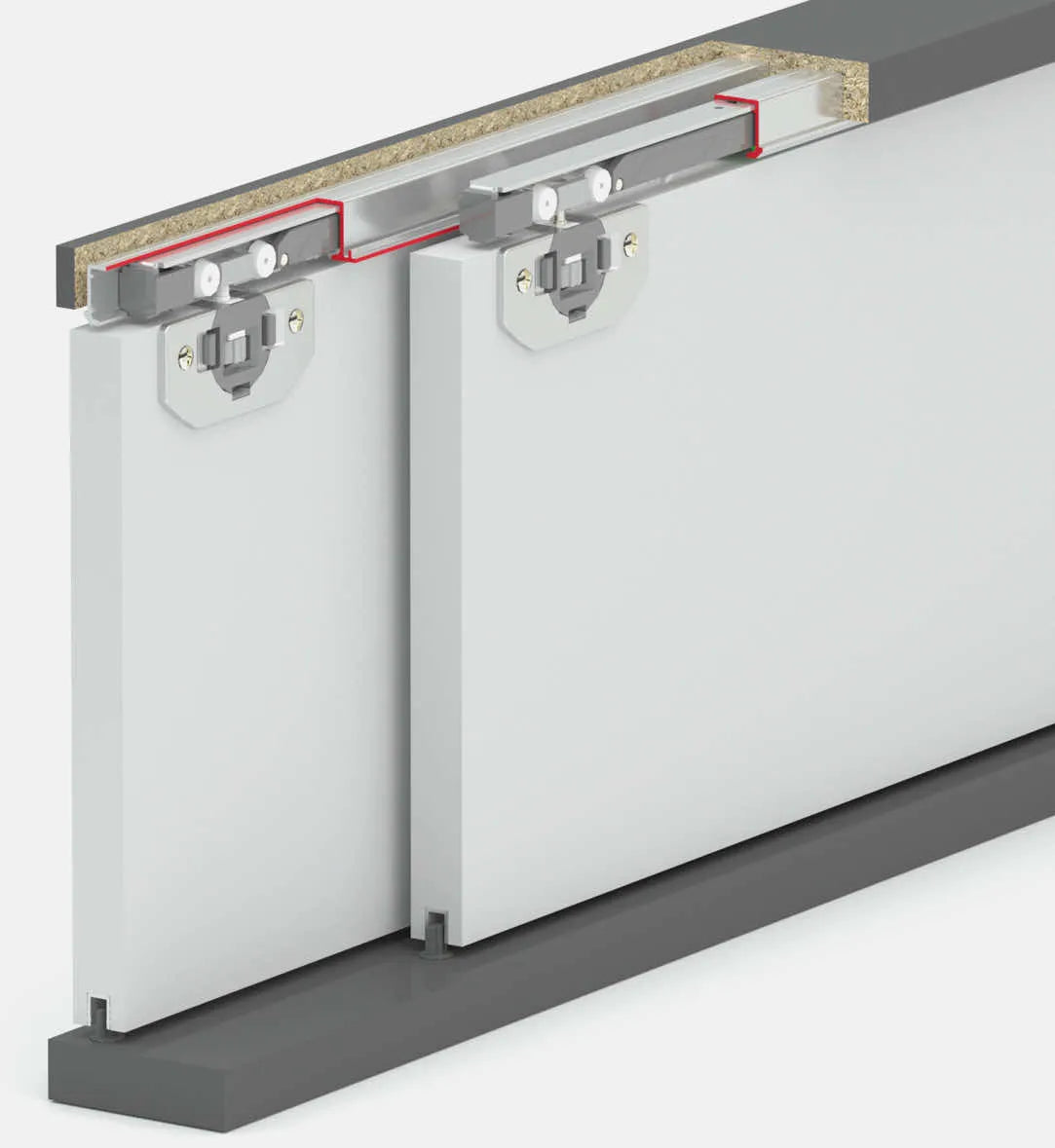

15 KG SLIDING DOOR SYSTEM

Internal sliding bottom door system with bottom carrier
Able to use wooden doors.
Able to use 2 / 3 / 4 door.
Maximum carrying capacity is 20 kg per door.
Able to use door thickness 18 - 25 mm
Carrier mechanism body is made of sheet material
Recomended for use with maximum height of 2600 mm
Minimum door width is 680 mm
Doors can be adjusted vertically ± 4 mm
System has soft closing opening and closing way within rail brake system feature.
Soft closer fixing inside the rail.
System is working with Oil soft closer system
Lower mechanism is Gama type. (male wheel)
Profiles and mechanism are shipping in separate packages.
In case of lot orders, it can be optionally shipping with Setbox Packaging.
You can follow installation 3D videos of our products on www.albaturas.com
It offers an aesthetic and stylish appearance thanks to its special anthracite paint.
System is working silent and long life working becasue of high quality ball bearings.
Can be applied to all doors with soft closing in both directions in 3 door applications.
It is suitable for glass or mirror application on the door depending on the carrying capacity.
It has different rail profile alternatives as well as the choice of recessed lower and upper rail profile
