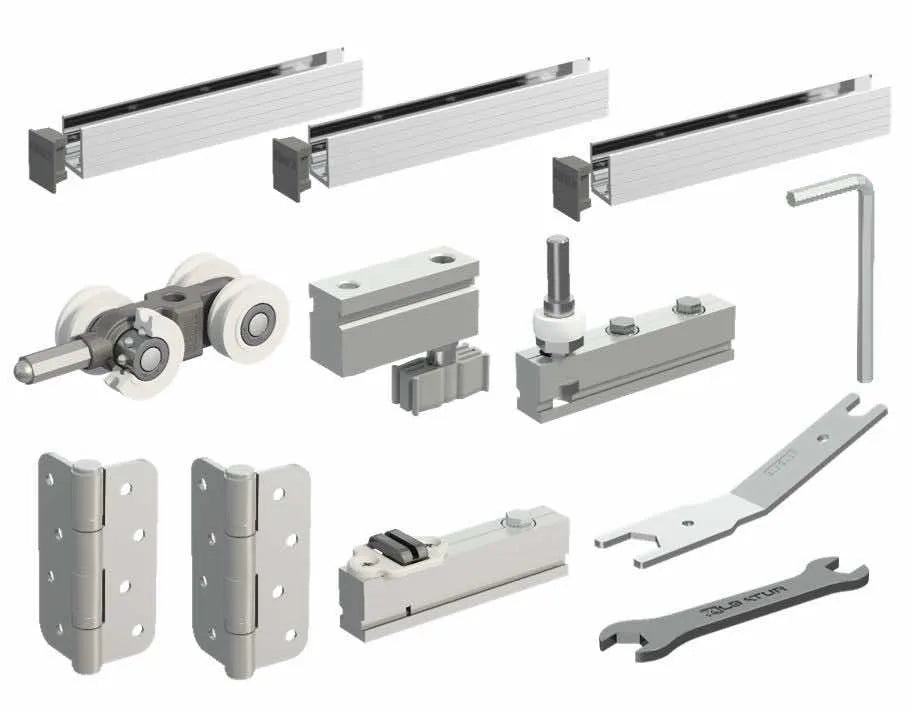

160 KG FOLDABLE SLIDING DOOR SYSTEM

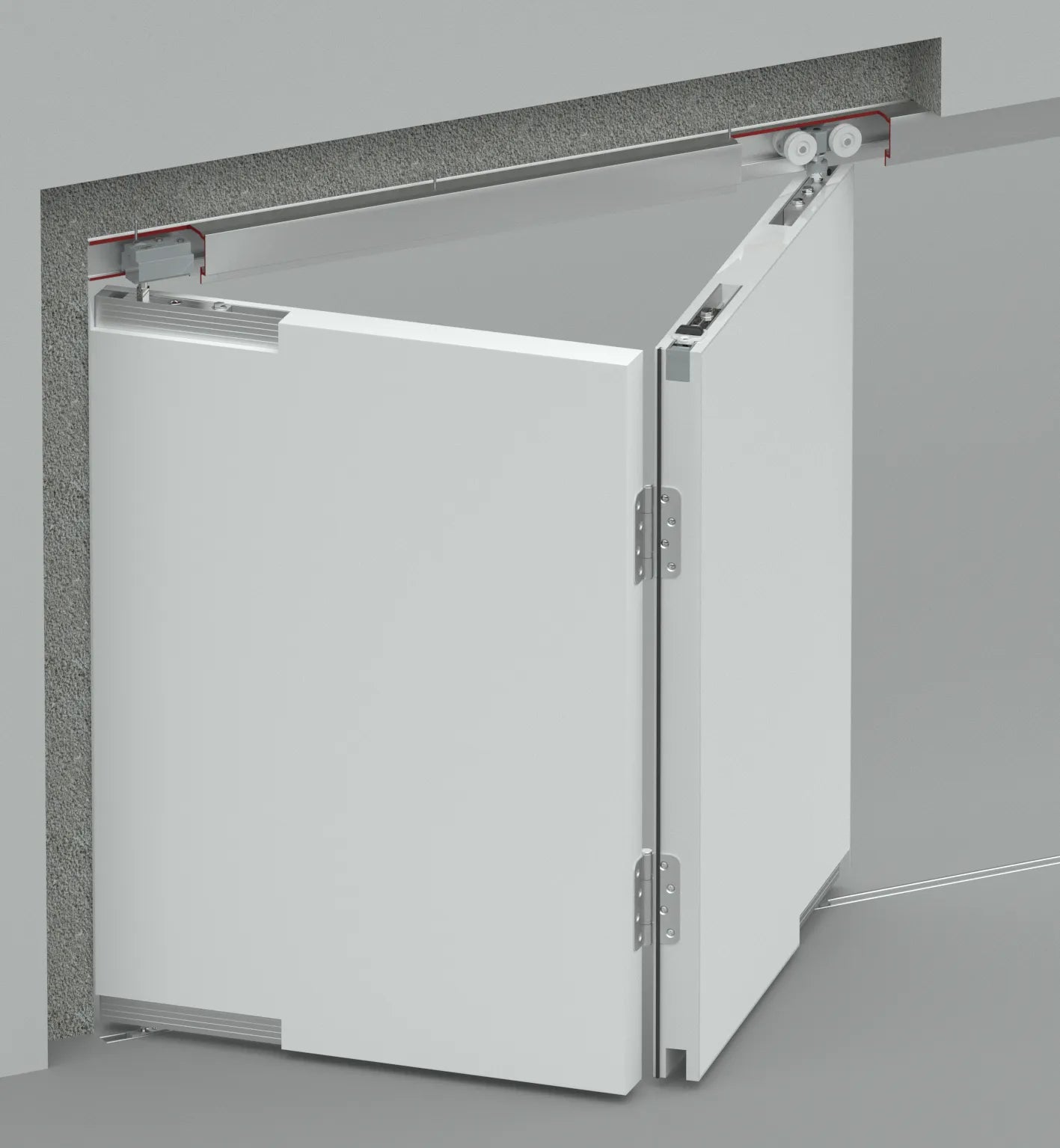

- Top-hung sliding pivot folding door system
- Designed for wooden panel doors
- Operates with a top-hung sliding mechanism
- Door mounting type is center-supported pivot system
- Applicable for up to 8 panels
- Can be installed with or without a bottom rail
- Load capacity is 160 kg for 2 panels
- Suitable for panel thicknesses between 40 - 50 mm
- Minimum panel width should be 550 mm
- Maximum panel width should be 950 mm
- Maximum height should be 2700 mm
- For panels with a height of 2500 mm, a minimum of 2 pieces of 160-9300-1260 should be used per panel
- For panels over 2500 mm in height, a minimum of 3 pieces of 160-9300-1260 should be used per panel
- Provides long-lasting operation with high-quality bearing
- Carrier mechanism uses Beta-type (female wheel) model
- Equipped with an aluminum mechanism body
- Height adjustment is available in upward and downward directions
- Suitable for both indoor and outdoor applications
- We offer configurations to connect almost any number of panels in various combinations
- Can be used to divide spaces such as restaurants, cafes, and meeting rooms
- Whether as a versatile room divider or a stylish exterior system to open up a home, we offer options for every project
- You can watch the installation video at www.albaturas.com
Explore organic, eco-friendly products crafted from natural ingredients. Fresh, chemical-free essentials for a healthier lifestyle and a more sustainable, conscious way of living.
Couldn't load pickup availability
Product Information
Product Information
Our
range
of
folding
door
hardware
is
suitable
for
doors
weighing
up
to
160
kg
and
can
be
used
for
both
internal
and
external
applications.We
feature
options
that
connect
virtually
any
number
of
doors
in
various
combinations.Whether
it
is
a
versatile
room
divider
or
a
stylish
external
system
designed
to
open
a
home
to
the
outdoors,
we
have
options
suitable
for
every
project.
