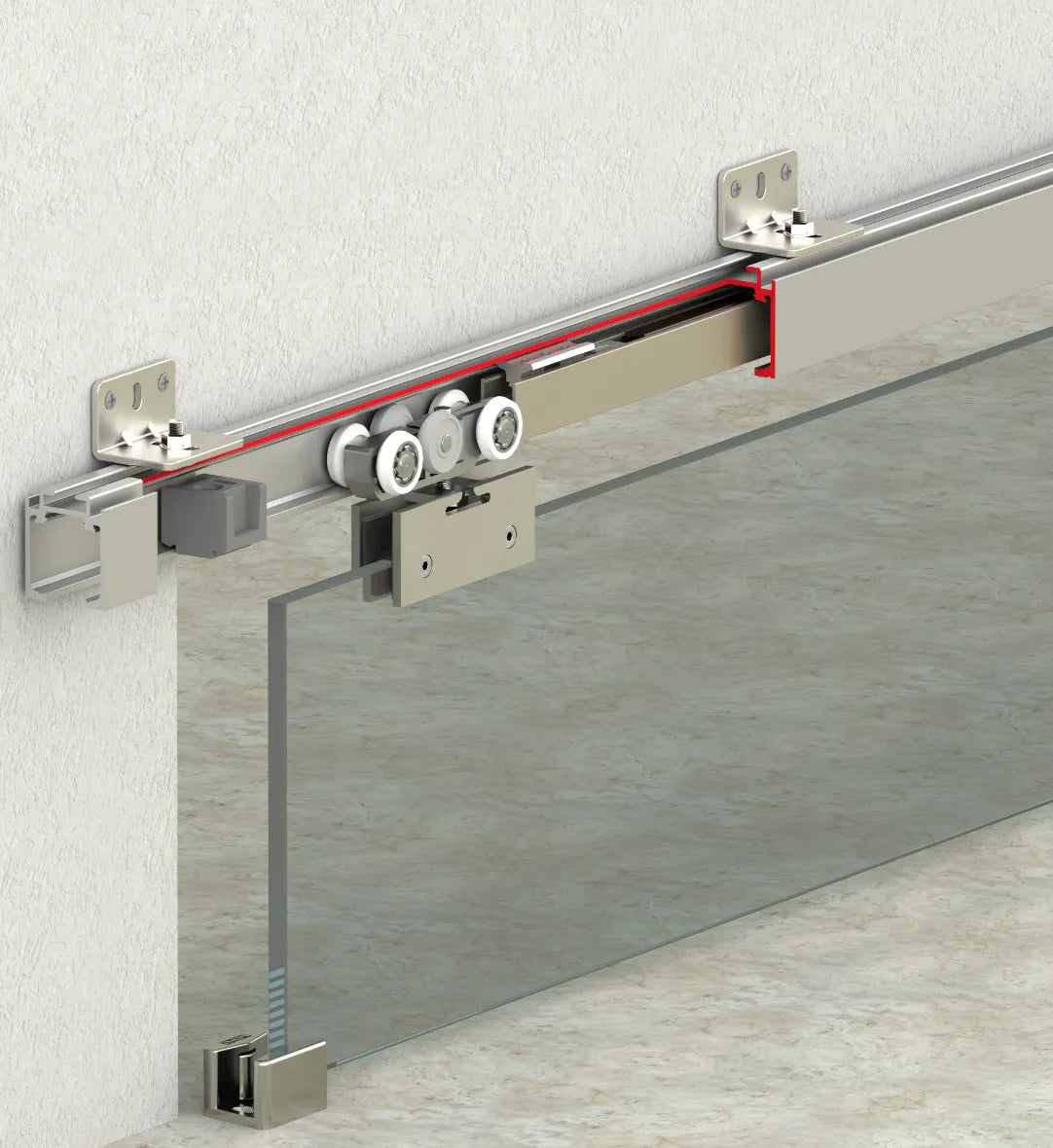

40 KG ADJUSTABLE SLIDING GLASS DOOR SYSTEM - TWO WAY SOFT CLOSING
- Designed for glass doors.
- It is a sliding door system.
- It requires drilling on the glass.
- The mechanism and rail profile are specially designed for in-wall systems.
- The operating type is a top-hung suspension system.
- The load capacity is 40 kg for one door.
- The wheel-integrated in-rail brake system provides braking in both opening and closing directions.
- It is suitable for glass thicknesses between 8–12 mm.
- Use is recommended up to a maximum height of 2300 mm.
- The minimum door width should be 460 mm.
- The three wheels on the mechanism prevent bouncing during closing.
- The carrier mechanism wheel type is a straight model.
- High-quality bearings ensure quiet and long-lasting operation.
- The carrier mechanism body is manufactured from aluminum and zamak materials.
- It operates with a hydraulic soft-closing piston system.
- Height adjustment can be made on the upper mechanism.
- A plastic guide suitable for different thicknesses is included in the bottom detail.
- Profiles and mechanisms are shipped in separate packages.
- For lot orders, optional Setbox Packaging can be provided.
- You can access the 3D installation video of the sliding system at albaturas.com.
Explore organic, eco-friendly products crafted from natural ingredients. Fresh, chemical-free essentials for a healthier lifestyle and a more sustainable, conscious way of living.
Couldn't load pickup availability
Product Information
Product Information
GlassDoor
9926
–
Silent
Elegance
for
Glass
DoorsIn
modern
living
spaces
where
aesthetic
details
and
functional
solutions
come
to
the
fore,
door
systems
have
become
not
just
a
means
of
passage,
but
an
inseparable
part
of
the
architecture.
Designed
with
this
understanding,
GlassDoor
9926
is
a
specialized
sliding
system
that
brings
elegance,
silence,
and
comfort
together
for
glass
doors.Compatible
with
glass
panels
of
8
to
12
mm
thickness,
GlassDoor
9926
reliably
meets
all
the
requirements
of
daily
use
with
a
load
capacity
of
40
kg
for
a
single
door
leaf.
Moreover,
this
performance
is
not
limited
to
durability
alone.
Thanks
to
its
integrated
in-track
braking
mechanism
within
its
internal
structure,
the
system
ensures
that
the
doors
slow
down
in
a
quiet
and
controlled
manner
in
both
opening
and
closing
directions.
This
extends
the
lifespan
of
the
door
while
elevating
user
comfort
to
the
highest
level.One
of
the
most
important
distinctions
of
GlassDoor
9926
is
that
it
prevents
vibrations
that
may
occur
during
closing
thanks
to
its
triple-roller
system.
This
feature
brings
along
not
only
silence
but
also
long-term
stability
and
a
trouble-free
user
experience.
The
system's
aluminum
body
and
high-quality
bearings
increase
both
visual
and
mechanical
durability,
reflecting
Albatur's
engineering
quality
in
every
detail.User-friendly
in
terms
of
design
and
installation
as
well,
GlassDoor
9926
offers
flexible
solutions
in
different
spaces
with
the
possibility
of
being
mounted
on
the
wall
surface.
The
plastic
guide
system,
which
eliminates
the
need
for
a
bottom
track,
removes
the
necessity
of
drilling
or
grooving
the
floor;
thus,
the
application
becomes
fast,
and
the
integrity
of
the
space
is
preserved.
With
a
minimum
door
width
requirement
of
460
mm,
it
is
possible
to
create
efficient
and
elegant
solutions
even
in
narrow
spaces.In
addition,
the
height
adjustment
feature
located
on
the
top
mechanism
allows
for
precise
fine-tuning
to
be
done
easily
during
installation.
Thanks
to
the
connection
brackets
specially
developed
for
the
track
profile,
the
installation
process
is
highly
practical
and
time-saving
for
both
technical
personnel
and
end-users.
You
can
effortlessly
access
all
details
regarding
the
setup
of
the
product
through
the
3D
assembly
video
available
at
www.albaturas.com.Consequently,
with
its
simple
design,
technical
superiorities,
and
user-friendly
structure,
GlassDoor
9926
offers
a
solution
that
does
not
just
provide
passage
for
glass
doors,
but
transforms
the
entire
atmosphere
of
the
space.
Aesthetics,
silence,
and
functionality...
They
all
meet
on
the
same
track
in
this
system.
