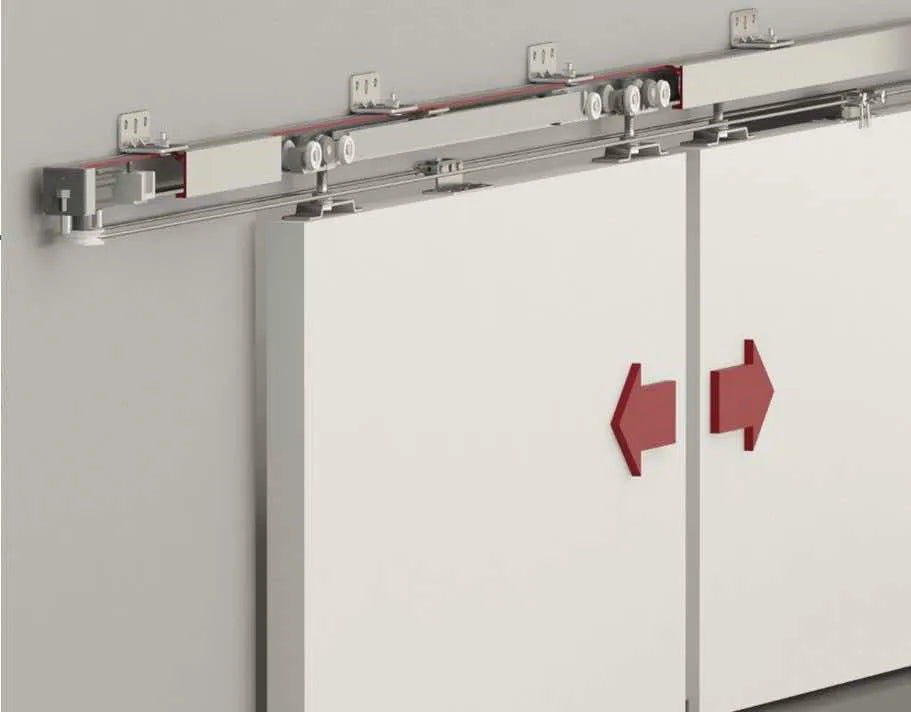

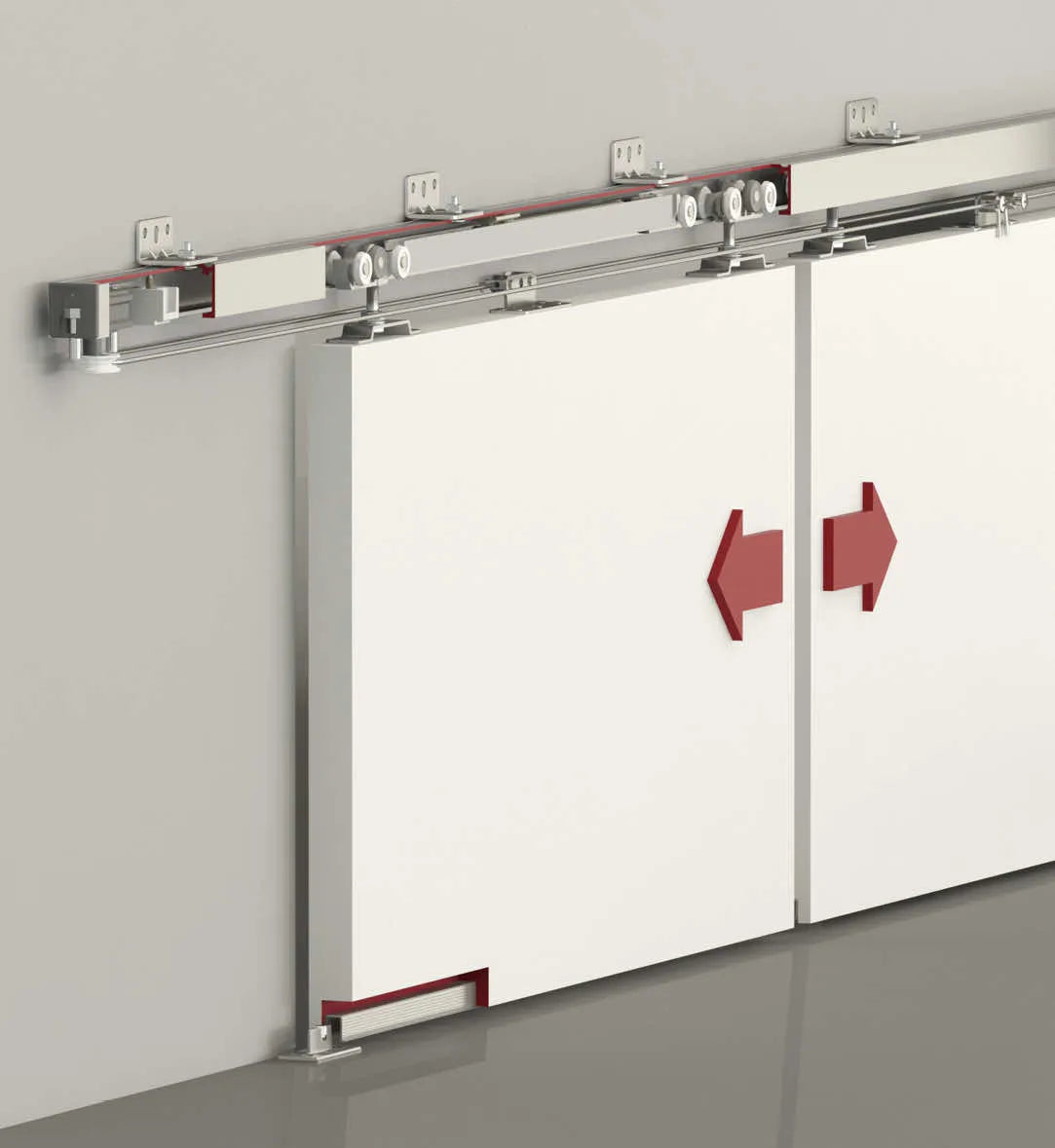

60 KG FUNICULAR SLIDING DOOR SYSTEM -HAS TWO WAY SOFT
- Synchronized double sliding door system
- Designed for wooden panel sliding doors
- Mechanism and rail profile are specially designed for in-wall systems
- Integrated in-rail brake system provides braking in both opening and closing directions
- Thanks to the corded system, doors operate in synchronized motion
- Mounting bracket for rail profile is available for wall surface installation
- Load capacity is 60 kg per panel
- Suitable for panel thicknesses between 22 - 60 mm
- Minimum panel width must be 650 mm
- Special PVC-coated cord prevents wear on synchronized wheels
- Triple-wheel structure on the mechanism prevents misalignment during closing
- Carrier mechanism body is made of aluminum and zamak materials
- Provides quiet and long-lasting operation with high-quality bearing
- Operates with an oil-damped soft-closing piston system
- Height adjustment can be made from the top mechanism
- Offers aesthetic appearance and smooth operation
- Allows for easy and practical installation
- Profiles and mechanisms are shipped in separate packages
- You can access the 3D installation video of the sliding system at albaturas.com
