80 KG SLIDING GLASS DOOR SYSTEM
- Designed for glass doors.
- It is a sliding door system.
- It requires drilling on the glass.

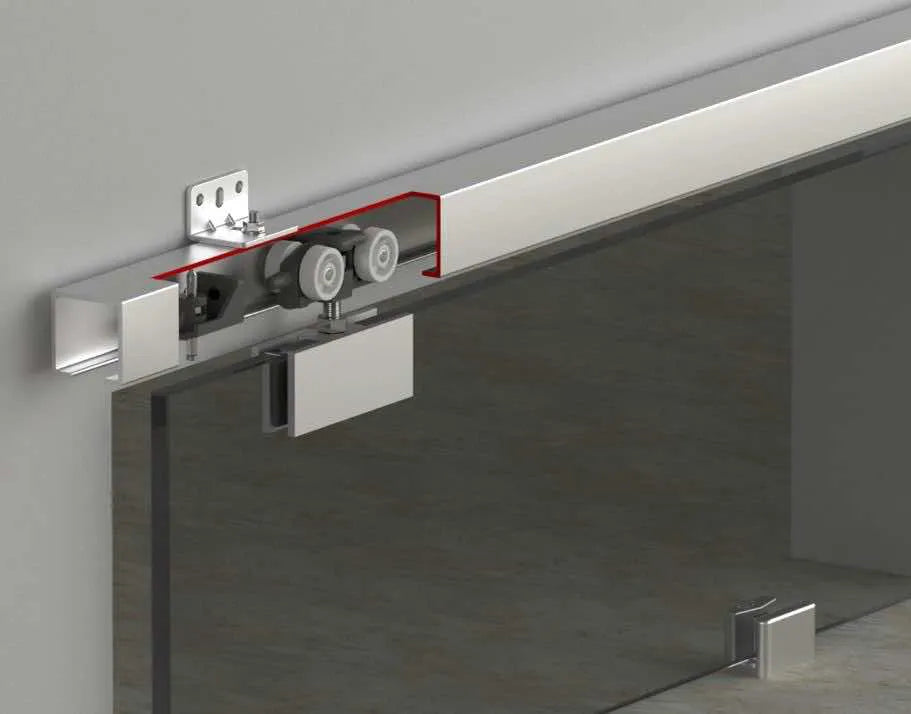

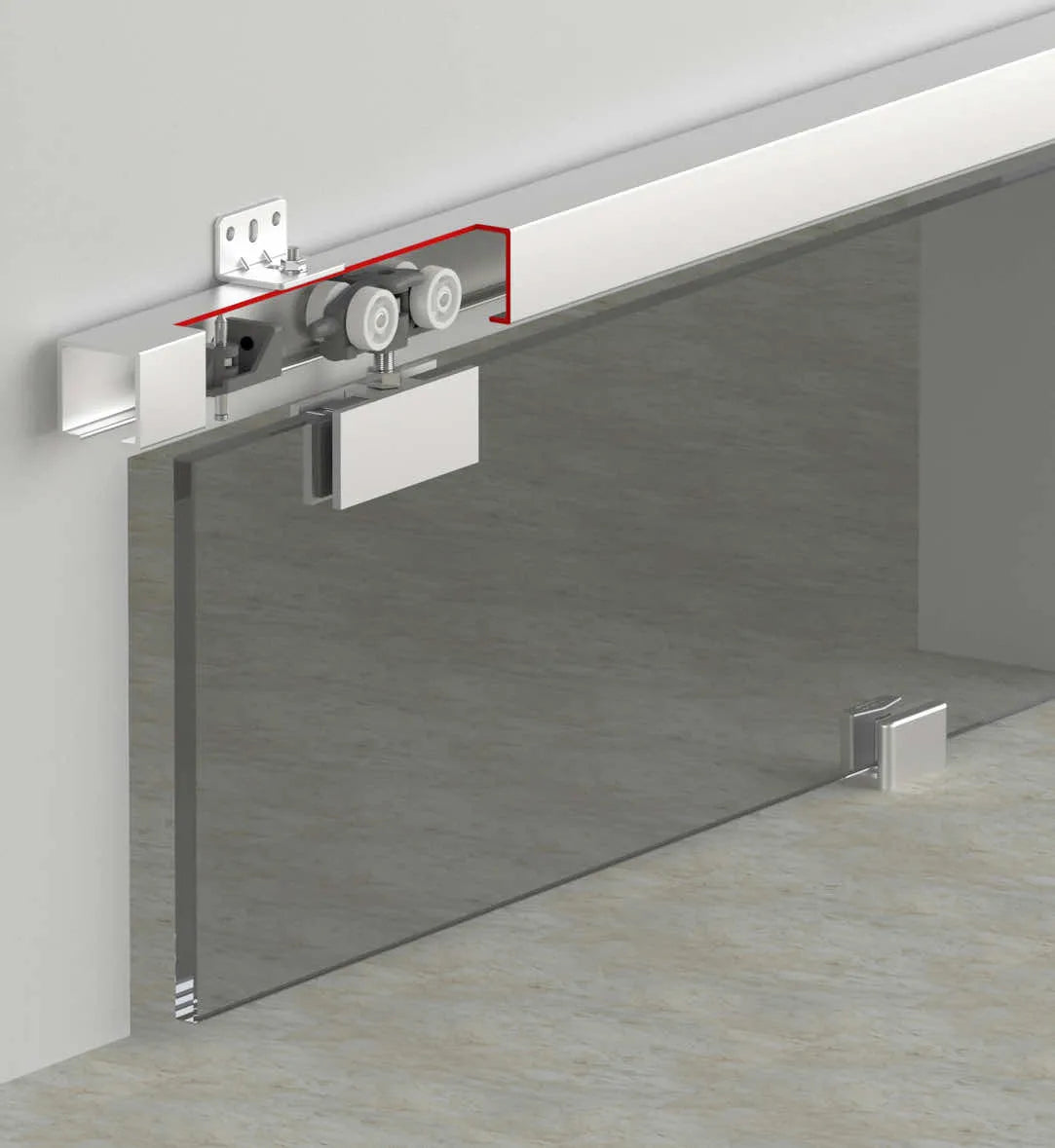

- The operating type is a top-hung suspension system.
- The load capacity is 80 kg for one door.
- It is suitable for glass thicknesses between 8–12 mm.
- Use is recommended up to a maximum height of 2300 mm.
- The carrier mechanism wheel type is a straight model.
- High-quality bearings ensure quiet and long-lasting operation.
- The carrier mechanism body is manufactured from durable plastic material.
- Height adjustment can be made on the upper mechanism.
- An optional closure profile that can be mounted on the rail hides the mechanism details.
- A plastic guide suitable for different thicknesses is included in the bottom detail.
- Profiles and mechanisms are shipped in separate packages.
- For lot orders, optional Setbox Packaging can be provided.
- You can access the 3D installation video of the sliding system at albaturas.com.
Explore organic, eco-friendly products crafted from natural ingredients. Fresh, chemical-free essentials for a healthier lifestyle and a more sustainable, conscious way of living.
Couldn't load pickup availability
Product Information
Product Information
GlassDoor
9911
–
80
KG
Adjustable
Sliding
Glass
Door
SystemGlassDoor
9911
is
a
high-quality
sliding
door
system
developed
for
glass
doors
with
its
modern
and
functional
design.
Compatible
with
glass
thicknesses
of
8
mm,
10
mm,
and
12
mm,
this
system
has
a
load
capacity
of
80
kg
for
a
single
door.
Thanks
to
the
height
adjustment
located
on
its
top
mechanism,
it
ensures
perfect
alignment
of
the
door.
Operating
on
a
top-hung
system
principle,
GlassDoor
9911
offers
safe
and
robust
operation
with
glass
holders
mounted
into
pre-drilled
holes
in
the
glass.
While
it
can
be
easily
mounted
on
the
wall
surface
thanks
to
the
track
profile
connection
brackets,
the
bottom
guide
mechanism
is
supported
by
a
plastic
guide
suitable
for
different
thicknesses.
Thanks
to
the
stopper
system,
the
door
is
brought
to
a
safe
halt,
providing
quiet
and
controlled
operation.
Standing
out
with
its
practical
installation
advantage,
this
system
is
presented
as
a
complete
set
in
a
box,
including
all
the
necessary
accessories
for
setup
and
the
user
manual.
Add
elegance,
safety,
and
comfort
to
your
living
spaces
with
GlassDoor
9911!
